Media Resistance Guide
With our Media Resistance Guide you can easily check the resistance of our materials to the most common chemicals.
The most commonly used sealing element is the O-ring. Trygonal offers a wide range of O-rings and static sealing elements. Each O-ring size is available in metric or inch dimensions. It is also available in custom sizes. The smallest dimensions start with cord thicknesses and inner diameters of < 1 mm. The largest O-rings manufactured in one piece have cord thicknesses of > 30 mm or diameters of > 3000 mm.

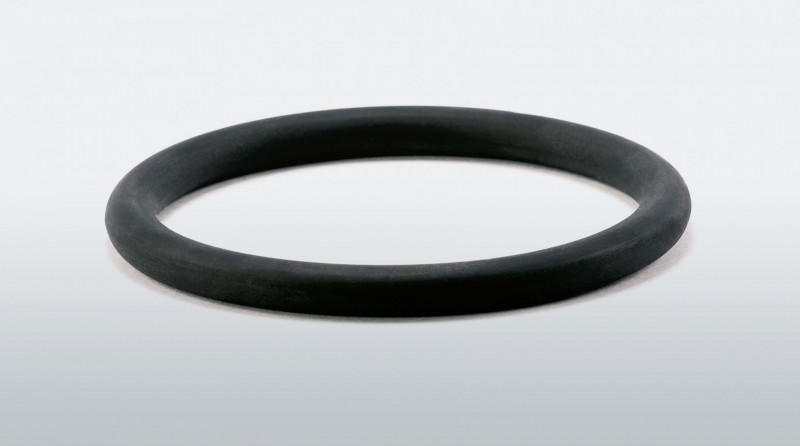

Standard O-Ring
Our O-rings are manufactured in all common rubber materials, according to international standards, in metric and inch dimensions in hardness ranges from 40 to 95 Shore A or IRHD. In addition, a large number of special materials are available. Tools are available for currently 30,347 dimensions in 200 cord thicknesses.
Turned O-Rings
For special dimensions or if the application requires a special material, O-rings can also be turned. Turned O-rings are available from batch size 1 up to several thousand pieces, in dimensions from Ø10×1.0 mm up to Ø1450×25 mm depending on the material group.
Advantages:
- No mould costs
- Rings can be easily replaced in a very short time
FEP, PFA coated O-Rings
Sheathed O-rings combine the positive properties of the sheath and the rubber-elastic core and are therefore ideally suited for applications in the chemical, food and pharmaceutical industries.
Advantages:
- Low coefficient of friction and good sliding properties resistant to many organic and inorganic chemicals
- High thermal load capacity
- FDA approved
- Low vapour permeability
- Low compression set
Approvals and Conformities
Our materials meet the most varied chemical, technical and physical requirements and in some cases will have the necessary approvals and conformities.
Material FPM
- FPM 70 Low temperature down to -40° C, black
- FPM 70 FDA compliant
- FPM 75 DIN EN DVGW 549, seals, black
- FPM 80 BAM
- FPM 90 Low temperature down to -30° C, black
Material NBR
- NBR 40 DIN EN DVGW 549, membranes, black
- NBR 45 electrically conductive
- NBR 50 DIN EN DVGW 549
- NBR 60 DIN EN DVGW 549, seals and membranes, black
- NBR 60 KTW recommendation D1/D2
- NBR 60 Low temperature, black
- NBR 60 Food quality, bright
- NBR 90 complies with UL 94 HB
Material EPDM
- EPDM 50 FDA compliant, blue
- EPDM 60 electrically conductive
- EPDM 70 according to BGA, FDA compliant
- EPDM 80 low temperature down to -50° C, black
Material MVQ
- MVQ 40 according to BGA, FDA compliant, transparent
Material H-NBR
- H-NBR 70 FDA compliant, black
- H-NBR 70 Low temperature
Material FFKM
- Perfluoroethers FDA compliant, beige
- Perfluorether FDA compliant, black
- Perfluoroethers FDA compliant, white
Material MFQ
- Fluorosilicone 60Sh blue DIN EN DVGW 549
Norms
We produce O-rings according to many norms. please send us an inquiry.
- DIN 3771 (Germany)
- ISO 3601-1 (international)
- AS 568A (USA)
- BS 1806 (Great Britain)
- SMS 1586 (Sweden)
- AFNOR 47501 (France)
- JISB 401 (Japan)
Surface treatment and coatings
Dynamic Application – DA
PTFE – black or grey
- Well structured surface
- Paired running surfaces made of metal
Conditional Dynamic Application – BA
PTFE – transparent (two-component)
- Suitable for plastic paired running surfaces
- Smooth surface structure
Mounting aid – MA
PTFE-FDA compliant (one-component)
- Reduction of press-in forces
- Surface adhesion moderate
Easy assembly – ME
PTFE-ME (one component)
- Separation is ensured
- Automatic processing
Chemical resistance – CB
- Coating with: Silicone, PTFE
- Improvement of chemical resistance
Labs-free (no paint wetting interference) – LA
- Silicones and other substances that interfere with paint wetting are completely removed.
- After this process, the cleaned parts are safely "labs-free".
- Suitable for all materials except MVQ and MFQ.
- O-rings that are mounted in paint shops or come into contact with paint must be "labs-free".
Fluorination – FL
- Fluorination creates a flexible, thin and hard outer layer that greatly reduces the coefficient of friction.
- Attention: Only NBR and EPDM materials can be treated.
- This treatment prevents sticking and facilitates separation.
Overview FPM/FKM Compounds
Material description
There are many types of FKM's based on the monomers used to build the backbone of the elastomer. There are also three curing systems that have different performance characteristics. These characteristics define the performance of the product. Contact your supplier to determine which product and curing system is best suited for your process.
Main Properties
Excellent resistance to high temperatures; excellent resistance to oil, petrol, hydraulic fluids and hydrocarbon solvents; very good impermeability to gases and vapours; very good resistance to weathering, oxygen, ozone and sunlight; good flame retardancy.
Limits
Medium tear and cut resistance, very low resistance to oxygenated solvents.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| FPM 50 | black | bisphenolic cross-linked, type A | -15 / +220 | 50 | 80-01-50000 | PDF, 201 KB | |
| FPM 50 | black | Steam resistant material | corresponds to type G | 50 | 80-01-50001 | – | |
| FPM 50 | green | peroxide cross-linked, type G | -15 / +200 | 50 | 80-01-50005 | PDF, 211 KB | |
| FPM 57 | green | peroxide cross-linked, type F | -10 / +210 | 57 | 80-01-57000 | – | |
| FPM 60 | black | bisphenolic cross-linked, type A | -20 / +210 | 60 | 80-01-60000 | PDF, 216 KB | |
| FPM 60 | green | bisphenolic cross-linked, type A | -10 / +220 | 60 | 80-01-60003 | PDF, 209 KB | |
| FPM 60 | black | Steam resistant material | bisphenolic cross-linked, type A | -20 / +220 | 60 | 80-01-60004 | – |
| FPM 65 | black | bisphenolic cross-linked, type A | -20 / +210 | 65 | 80-01-65000 | – | |
| FPM 69 | black | bisphenolic cross-linked, type A | -20 / +220 | 70 | 80-01-70000 | – | |
| FPM 70 | green | bisphenolic cross-linked, type A | -20 / +210 | 70 | 80-01-70001 | PDF, 210 KB | |
| FPM 70 | none | 70 | 80-01-70003 | – | |||
| FPM 70 | red | MMN 387 | bisphenolic cross-linked, type A | -20 / +220 | 70 | 80-01-70004 | PDF, 196 KB |
| FPM 70 | green | bisphenolic cross-linked, (60% fluorine) | -15 / +220 | 70 | 80-01-70005 | – | |
| FPM 70 | black | bisphenolic cross-linked | -15 / +220 | 70 | 80-01-70006 | – | |
| FPM 70 | black | -40 / +205 | 70 | 80-01-70007 | – | ||
| FPM 70 | black | FDA compliant | -28 / +230 | 70 | 80-01-70008 | – | |
| FPM 70 | blue | FDA compliant | bisphenolic cross-linked, type A | -20 / +220 | 70 | 80-01-70009 | – |
| FPM 70 | white | FDA compliant | bisphenolic cross-linked, type A | -15 / +220 | 70 | 80-01-70010 | – |
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
| FPM 70 | black | bisphenolic cross-linked, type A | -30 / +200 | 70 | 80-01-70011 | – | |
| FPM 70 | black | peroxide cross-linked, type G (GLT) | 70 | 80-01-70013 | – | ||
| FPM 70 | green | 70 | 80-01-70017 | – | |||
| FPM 70 | red / blue / green | FDA compliant | 70 | 80-01-70018 | – | ||
| FPM 70 | green | FDA compliant | 70 | 80-01-70019 | – | ||
| FPM 70 | none | FDA compliant | 70 | 80-01-70020 | – | ||
| FPM 70 | black | FDA compliant | bisphenolic cross-linked, type A | -20 / +210 | 70 | 80-01-70021 | – |
| FPM 70 | black | FDA complaint, DVGW_EN_549_E1_H3 | bisphenolic cross-linked, type A | -25 / +230 | 70 | 80-01-70052 | PDF, 220 KB |
| FPM 70 | black | FDA compliant | peroxide cross-linked, type G | -18 / +200 | 70 | 80-01-70063 | PDF, 220 KB |
| FPM 70 | white | bisphenolic cross-linked, type A | -16 / +200 | 70 | 80-01-70077 | PDF, 200 KB | |
| FPM 75 | black | DVGW 549 | bisphenolic cross-linked, type A | -15 / +210 | 75 | 80-01-75000 | PDF, 218 KB |
| FPM 75 | brown | FDA compliant | diaminic cross-linked, corresponds to Type A | -15 / +220 | 75 | 80-01-75003 | – |
| FPM 75 | black | peroxide cross-linked, type F | -20 / +210 | 75 | 80-01-75005 | PDF, 213 KB | |
| FPM 75 | black | Optimized against explosive decompression | peroxide crosslinked, (71% fluorine) | -5 / +200 | 75 | 80-01-75006 | PDF, 222 KB |
| FPM 75 | black | Electrically conductive | peroxide cross-linked, type G | -20 / +210 | 75 | 80-01-75014 | – |
| FPM 80 | black | Type A | 80 | 80-01-80000 | – | ||
| FPM 80 | black | FDA compliant | -28 / +230 | 80 | 80-01-80001 | – | |
| FPM 80 | black | bisphenolic cross-linked, type B | -20 / +210 | 80 | 80-01-80002 | PDF, 213 KB | |
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
| FPM 80 | black | -28 / +230 | 80 | 80-01-80005 | – | ||
| FPM 80 | green | 80 | 80-01-80007 | – | |||
| FPM 80 | red | 80 | 80-01-80008 | – | |||
| FPM 80 | none | 80 | 80-01-80009 | – | |||
| FPM 80 | green | bisphenolic cross-linked, type B | -17 / +210 | 80 | 80-01-80022 | PDF, 213 KB | |
| FPM 80 | black | bisphenolic cross-linked, type A | -15 / +210 | 80 | 80-01-80023 | PDF, 210 KB | |
| FPM 80 | black | bisphenolic cross-linked, (60% fluorine) | 80 | 80-01-80024 | – | ||
| FPM 80 | black | Viton-Extreme, material machinable | peroxide crosslinked, (66% fluorine) | -5 / +210 | 80 | 80-01-80038 | PDF, 216 KB |
| FPM 85 | black | corresponds to type GF | 85 | 80-01-85000 | – | ||
| FPM 85 | brown | FDA compliant, material machinable | bisphenolic crosslinked, (66 / 68.5% fluorine) | -25 / +220 | 85 | 80-01-85002 | PDF, 220 KB |
| FPM 85 | white | FDA compliant, material machinable | peroxide crosslinked, (70% fluorine) | -20 / +210 | 85 | 80-01-85005 | PDF, 219 KB |
| FPM 85 | brown | FDA compliant, material machinable | bisphenolic cross-linked, type A | -20 / +210 | 85 | 80-01-85006 | – |
| FPM 85 | black | Material machinable | bisphenolic cross-linked, type A | 85 | 80-01-85007 | – | |
| FPM 90 | black | bisphenolic cross-linked, type A | -20 / +210 | 90 | 80-01-90000 | – | |
| FPM 90 | black | peroxide cross-linked, Type GF | -30 / +190 | 90 | 80-01-90006 | PDF, 217 KB | |
| FPM 90 | black | -28 / +230 | 90 | 80-01-90008 | – | ||
| FPM 90 | green | 90 | 80-01-90011 | – | |||
| FPM 90 | brown | 90 | 80-01-90012 | – | |||
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
| FPM 95 | black | bisphenolic cross-linked | -28 / +200 | 95 | 80-01-95001 | – | |
| FPM 53 | green | FDA complaint | bisphenolic cross-linked, type A | -15 / +220 | 53 | 80-01-V5000 | PDF, 215 KB |
| FPM 70 | black | MMN 387, MTL5076 | peroxide cross-linked, type G | -20 / +190 | 70 | 80-01-V7011 | PDF, 217 KB |
| FPM 70 | black | peroxide cross-linked | -20 / +200 | 70 | 80-01-V7028 | – | |
| FPM 75 | black | Resistant to chlorine gas | 75 | 80-01-V7510 | – | ||
| FPM 75 | black | Optimized against explosive decompression | bisphenolic cross-linked | -5 / +210 | 75 | 80-01-V7512 | – |
| FPM 80 | black | bisphenolic cross-linked, type A | -20 / +200 | 80 | 80-01-V8002 | PDF, 207 KB |
Overview NBR Compounds
Material Description
NBR are copolymers of butadiene (BD) and acrylonitrile (ACN). The monomer ratio can be varied over a wide range. NBR with higher ACN offers improved oil resistance, fuel resistance and tear strength.
Main Properties
Very good resistance to oil and petrol: excellent resistance to petroleum-based hydraulic fluids, wide operating temperature range, good resistance to hydrocarbon solvents, very good resistance to alkalis and solvents.
Limits
Low resistance to ozone, sunlight and natural ageing, poor resistance to oxygenated solvents.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| NBR 40 | black | DVGW 549: H1/82 | sulphur cross-linked | -20 / +120 | 40 | 80-02-40000 | – |
| NBR 40 | black | MMN375 | sulphur cross-linked | -40 / +100 | 40 | 80-02-40001 | PDF, 213 KB |
| NBR 45 | black | Electrically conductive | sulphur cross-linked | -40 / +100 | 45 | 80-02-45001 | PDF, 216 KB |
| NBR 50 | black | FDA compliant, complies with BGA | sulphur cross-linked | -35 / +100 | 50 | 80-02-50000 | PDF, 216 KB |
| NBR-SBR 50 | black | sulphur cross-linked | -30 / +80 | 50 | 80-02-50001 | – | |
| NBR 50 | black | sulphur cross-linked | 0 / +100 | 50 | 80-02-50002 | – | |
| NBR 50 | beige | FDA und BfR konform | sulphur cross-linked | -30 / +120 | 50 | 80-02-50003 | – |
| NBR 50 | black | DIN EN 549 DVGW | sulphur cross-linked | -20 / +80 | 50 | 80-02-50005 | PDF, 225 KB |
| NBR 50 | black | sulphur cross-linked | -40 / +100 | 50 | 80-02-50019 | PDF, 195 KB | |
| NBR 60 | black | sulphur cross-linked | -30 / +100 | 60 | 80-02-60004 | – | |
| NBR 60 | grey | RAL 7012 | sulphur cross-linked | -35 / +100 | 60 | 80-02-60007 | – |
| NBR 60 | black | DVGW DIN EN 549 | sulphur cross-linked | -20 / +80 | 60 | 80-02-60009 | – |
| NBR 60 | black | sulphur cross-linked | 60 | 80-02-60012 | – | ||
| NBR 60 | light | BGVV Part XXI Cat. 3 compliant | sulphur cross-linked | -25 / +80 | 60 | 80-02-60013 | – |
| NBR 65 | black | sulphur cross-linked | -40 / +100 | 65 | 80-02-65000 | PDF, 195 KB | |
| NBR 65 | grey | RAL 7012 | sulphur cross-linked | -35 / +100 | 65 | 80-02-65001 | – |
| NBR 70 | black | FDA konform | peroxide cross-linked | -35 / +120 | 70 | 80-02-70000 | – |
| NBR 70 | black | peroxide crosslinked / 35% ACN | -30 / +130 | 70 | 80-02-70002 | – | |
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
| NBR 70 | black | Electrically conductive | sulphur cross-linked | -35 / +100 | 70 | 80-02-70003 | – |
| NBR 70 | black | sulphur cross-linked | -40 / +100 | 70 | 80-02-70006 | – | |
| NBR 70 | black | sulphur cross-linked | 70 | 80-02-70013 | – | ||
| NBR 70 | black | DVGW DIN EN 549 | sulphur cross-linked | -35 / +100 | 70 | 80-02-70028 | PDF, 210 KB |
| NBR 70 | blue | FDA compliant, metal detectable | peroxide cross-linked | -35 / +120 | 70 | 80-02-70082 | PDF, 206 KB |
| NBR 80 | black | sulphur cross-linked | -35 / +100 | 80 | 80-02-80000 | – | |
| NBR 80 | black | sulphur cross-linked | -25 / +110 | 80 | 80-02-80001 | – | |
| NBR 80 | grey | RAL 7038 | sulphur cross-linked | -30 / +120 | 80 | 80-02-80002 | – |
| NBR 77 | black | sulphur cross-linked | -40 / +110 | 77 | 80-02-80004 | – | |
| NBR-SBR 90 | black | sulphur cross-linked | -35 / +100 | 90 | 80-02-90000 | – | |
| NBR 90 | blue | FDA compliant | 90 | 80-02-90002 | – | ||
| NBR 90 | black | Compliant according to UL 94 HB | sulphur cross-linked | -40 / +100 | 90 | 80-02-90003 | PDF, 217 KB |
| NBR 90 | black | peroxide cross-linked | -30 / +110 | 90 | 80-02-90004 | – | |
| NBR 90 | black | sulphur cross-linked | -30 / +120 | 90 | 80-02-90005 | – | |
| NBR 85 | black | Material machinable | sulphur cross-linked | -20 / +90 | 85 | 80-02-V8500 | PDF, 210 KB |
Overview EPDM Compounds
Material Description
EPM and EPDM are both co- and terpolymers of ethylene, propylene and a monomer containing diene (ter-employer) to facilitate vulcanization. The monomer ratios are varied to obtain specific properties and properties. Due to their unique combination of properties, they can be used in a variety of products.
Main Properties
EPM elastomers have excellent resistance to ozone, water and steam, alkalis and acids, salt solutions and oxygenated solvents. EPM and EPDM have very low temperature resistance and excellent electrical properties.
Limits
Poor resistance to oil, petrol and hydrogenated solvents.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| EPDM 40 | light | sulphur cross-linked | -40 / +120 | 40 | 80-03-40000 | PDF, 209 KB | |
| EPDM 50 | black | FDA compliant | sulphur cross-linked | -40 / +110 | 50 | 80-03-50000 | PDF, 218 KB |
| EPDM 50 | white | FDA and BfR compliant | peroxide cross-linked | -40 / +100 | 50 | 80-03-50004 | – |
| EPDM 50 | black | FDA compliant | peroxide cross-linked | -40 / +140 | 50 | 80-03-50012 | PDF, 214 KB |
| EPDM 60 | black | peroxide cross-linked | -40 / +120 | 60 | 80-03-60001 | PDF, 221 KB | |
| EPDM 60 | black | FDA compliant | peroxide cross-linked | -40 / +100 | 60 | 80-03-60005 | – |
| EPDM 60 | black | FDA and BfR compliant | sulphur cross-linked | -30 / +120 | 60 | 80-03-60008 | – |
| EPDM 65 | black | KTW D1/D2 | 65 | 80-03-65000 | – | ||
| EPDM 70 | black | FDA compliant | peroxide cross-linked | -40 / +120 | 70 | 80-03-70000 | PDF, 221 KB |
| EPDM 70 | black | Electrically non-conductive | sulphur cross-linked | -40 / +120 | 70 | 80-03-70001 | – |
| EPDM 70 | black | FDA compliant | sulphur cross-linked | -40 / +130 | 70 | 80-03-70002 | PDF, 219 KB |
| EPDM 70 | black | peroxide cross-linked | -40 / +140 | 70 | 80-03-70004 | – | |
| EPDM 70 | white | FDA compliant | peroxide cross-linked | -40 / +130 | 70 | 80-03-70007 | – |
| EPDM 70 | black | sulphur cross-linked | -50 / +110 | 70 | 80-03-70008 | – | |
| EPDM 75 | light | FDA compliant | sulphur cross-linked | -40 / +140 | 75 | 80-03-75000 | – |
| EPDM 77 | black | peroxide cross-linked | -40 / +100 | 77 | 80-03-77000 | – | |
| EPDM 80 | black | FDA compliant | peroxide cross-linked | -40 / +120 | 80 | 80-03-80000 | PDF, 221 KB |
| EPDM 80 | black | Hot water resistant | -45 / +150 | 80 | 80-03-80003 | – | |
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
| EPDM 80 | black | sulphur cross-linked | -50 / +145 | 80 | 80-03-80004 | – | |
| EPDM 80 | black | FDA compliant | -45 / +150 | 80 | 80-03-80005 | – | |
| EPDM 90 | black | W 270 D1 | peroxide cross-linked | -45 / +125 | 90 | 80-03-V9002 | PDF, 216 KB |
Overview CR Compounds
Material Description
Polychloroprene is an excellent universal elastomer with an attractive balance of properties and few practical limitations. Universal neoprene grades are divided into two groups: sulphur modified grades and mercaptan modified grades. Sulphur-modified neoprenes have increased tear strength and elasticity, while mercaptan-modified neoprenes have better resistance to heat and compression set.
Main Properties
Good inherent flame resistance; moderate resistance to oil and petrol; excellent adhesion to fabrics and metals; very good resistance to weathering, ozone and natural ageing; good resistance to abrasion and bending fracture; very good resistance to alkali and acids.
Limits
Poor to good resistance to aromatic and oxygenated solvents; limited flexibility at low temperatures.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| Neopren 40 | black | sulphur cross-linked | -35 / +100 | 40 | 80-04-40001 | – | |
| Neopren 50 | black | sulphur / ETU networked | -35 / +100 | 50 | 80-04-50000 | PDF, 216 KB | |
| Neopren 50 | black | sulphur / ETU networked | 50 | 80-04-50001 | – | ||
| Neopren 60 | black | sulphur cross-linked | -35 / +100 | 60 | 80-04-60000 | PDF, 216 KB | |
| Neopren 70 | black | sulphur cross-linked | -30 / +100 | 70 | 80-04-70000 | – | |
| Neopren 75 | black | sulphur cross-linked | -35 / +110 | 75 | 80-04-75000 | – | |
| Neopren 80 | black | sulphur / ETU networked | -35 / +130 | 80 | 80-04-80000 | – |
Overview TFE Compounds
Material Description
High-quality fluoroelastomer in use.
Main Properties
Excellent resistance to amines and amine corrosion inhibitors, etchants and other high pH media, sour gas and oil, phosphate ester hydraulic fluid and glycol brake fluid.
Limits
Higher swelling in hydrocarbons, chlorinated solvents and esters than in FKM's. More limited in low temperature applications than in FKM's. May not be used in aliphatic or aromatic hydrocarbon fluids.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| Aflas 70 | black | peroxide cross-linked | -5 / +230 | 70 | 80-05-70000 | – | |
| TFE 80 | black | FDA compliant | peroxide cross-linked | -5 / +230 | 80 | 80-05-80000 | – |
| Aflas 90 | black | peroxide cross-linked | -5 / +230 | 90 | 80-05-90000 | – | |
| FEPM 75 | black | bisphenolic cross-linked | -10 / +220 | 75 | 80-05-V7500 | PDF, 212 KB | |
| FEPM 90 | black | peroxide cross-linked | -5 / +220 | 90 | 80-05-V9001 | PDF, 213 KB |
Overview MVQ Compounds
Material Description
The most outstanding property of silicone is its ability to maintain rubber-like properties through extreme temperatures. The operating temperatures range from -55 °C to +200 °C. Silicones are normally used in applications that require high resistance.
Main Properties
Excellent heat resistance; excellent flexibility at low temperatures; low compression set; very good electrical insulation; excellent resistance to weathering, ozone, sunlight and oxidation; excellent colour stability.
Limits
Poor abrasion resistance, resistance to tea and cut growth; low tensile strength; poor resistance to oil, petrol and solvents; poor resistance to alkalis and acids.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| MVQ 30 | transparent | peroxide cross-linked | -45 / +200 | 30 | 80-06-30000 | – | |
| MVQ 30 | red | FDA and BfR compliant | peroxide cross-linked | -40 / +200 | 30 | 80-06-30001 | – |
| MVQ 35 | transparent | FDA compliant | peroxide cross-linked | -45 / +200 | 35 | 80-06-35000 | – |
| MVQ 40 | transparent | FDA compliant | peroxide cross-linked | -50 / +180 | 40 | 80-06-40000 | – |
| MVQ 40 | red | peroxide cross-linked | -50 / +200 | 40 | 80-06-40001 | – | |
| MVQ 40 | black | FDA and BfR compliant | peroxide cross-linked | -40 / +180 | 40 | 80-06-40002 | – |
| MVQ 40 | transparent | FDA compliant | peroxide cross-linked | -50 / +200 | 40 | 80-06-40004 | – |
| MVQ 40 | red | Addition 40% Cu powder | -45 / +180 | 40 | 80-06-40005 | – | |
| MVQ 45 | transparent | FDA and BfR compliant | peroxide cross-linked | -45 / +170 | 45 | 80-06-45003 | PDF, 218 KB |
| MVQ 50 | red | FDA compliant | peroxide cross-linked | -40 / +210 | 50 | 80-06-50000 | – |
| MVQ 50 / rot P3 | red | FDA compliant | peroxide cross-linked | -40 / +200 | 50 | 80-06-50001 | PDF, 218 KB |
| MVQ 50 | grey | peroxide cross-linked | -40 / +250 | 50 | 80-06-50002 | – | |
| MVQ 50 | transparent | FDA compliant | -45 / +200 | 50 | 80-06-50003 | – | |
| MVQ 50 | blue | RAL 5010 | 50 | 80-06-50004 | – | ||
| MVQ 50 | red | Addition 40% Cu powder | peroxide cross-linked | -45 / +200 | 50 | 80-06-50005 | – |
| MVQ 50 | black | peroxide cross-linked | -40 / +180 | 50 | 80-06-50006 | – | |
| MVQ 50 | white | peroxide cross-linked | -40 / +180 | 50 | 80-06-50008 | – | |
| Silikon 50 | transparent | -40 / +180 | 50 | 80-06-50010 | – | ||
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
| Silikon 60 | beige | peroxide cross-linked | -40 / +180 | 60 | 80-06-60000 | PDF, 217 KB | |
| MVQ 60 | red | Addition 40% Cu powder | peroxide cross-linked | -40 / +210 | 60 | 80-06-60005 | – |
| MVQ 60 | transparent | FDA compliant | peroxide cross-linked | -40 / +200 | 60 | 80-06-60006 | – |
| MVQ 60 | black | peroxide cross-linked | -40 / +230 | 60 | 80-06-60009 | – | |
| Silikon 60 | black | peroxide cross-linked | -40 / +270 | 60 | 80-06-60029 | PDF, 210 KB | |
| Silikon 60 | grey | RAL 7040 | peroxide cross-linked | -40 / +200 | 60 | 80-06-60041 | PDF, 211 KB |
| MVQ 65 | red | peroxide cross-linked | -40 / +210 | 65 | 80-06-65000 | – | |
| MVQ 70 | red | FDA compliant | peroxide cross-linked | -40 / +200 | 70 | 80-06-70000 | PDF, 216 KB |
| MVQ 70 | red | FDA and BfR compliant ,' additive 40% Cu powder | peroxide cross-linked | -40 / +210 | 70 | 80-06-70002 | – |
| Silikon 70 | red brown | FDA and BfR compliant | peroxide cross-linked | -40 / +230 | 70 | 80-06-70004 | PDF, 215 KB |
| MVQ 70 | black | peroxide cross-linked | 70 | 80-06-70005 | – | ||
| MVQ 70 | blue | peroxide cross-linked | -40 / +180 | 70 | 80-06-70006 | – | |
| MVQ 70 | transparent | FDA and BfR compliant | Dicumyl peroxide | -40 / +180 | 70 | 80-06-70007 | – |
| MVQ 70 | red brown | peroxide cross-linked | -55 / +210 | 70 | 80-06-70008 | – | |
| MVQ 80 | red | peroxide cross-linked | -40 / +230 | 80 | 80-06-80000 | PDF, 215 KB | |
| MVQ 80 | transparent | -45 / +200 | 80 | 80-06-80002 | – | ||
| Silikonkautschuk 70 | transparent | Dicumyl peroxide | 70 | 80-06-V7000 | – | ||
| MVQ 90 | white | FDA and BfR compliant | peroxide cross-linked | 90 | 80-06-V9001 | PDF, 214 KB |
Overview MFQ Compounds
Material Description
The most outstanding property of silicone is its ability to maintain rubber-like properties through extreme temperatures. The operating temperatures range from -55 °C to +200 °C. Silicones are normally used in applications that require high resistance.
Main Properties
Excellent heat resistance; excellent flexibility at low temperatures; low compression set; very good electrical insulation; excellent resistance to weathering, ozone, sunlight and oxidation; excellent colour stability.
Limits
Poor abrasion resistance, resistance to tea and cut growth; low tensile strength; poor resistance to oil, petrol and solvents; poor resistance to alkalis and acids.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| MFQ 60 | beige | WLB 5.5688 Release | peroxide cross-linked | -40 / +200 | 60 | 80-07-60001 | – |
| MFQ 60 | blue | DVGW DIN EN 549 | peroxide cross-linked | -20 / +150 | 60 | 80-07-60002 | – |
| MFQ 70 | dark brown | peroxide cross-linked | -40 / +210 | 70 | 80-07-70000 | – | |
| Fluorsilikon 60 | red brown | peroxide cross-linked | -45 / +220 | 60 | 80-07-V6002 | PDF, 216 KB | |
| Fluorsilikon 70 | blue | peroxide cross-linked | -40 / +220 | 70 | 80-07-V7000 | PDF, 216 KB |
Overview NK Compounds
Material Description
Despite more modern synthetic rubbers, natural rubber is still used for engine suspensions, machine bearings, rubber-to-metal compounds, clutches, damping elements and similar components.
Main Properties
Natural rubber (NR) is a highly polymeric isoprene with very good physical properties, very high tensile strength, very good elasticity, very good low temperature properties, good abrasion resistance and excellent dynamic properties. This combination is rarely achieved by synthetic elastomers.
Limits
Without the appropriate addition of protective agents, however, the resistance to ageing and ozone is only slight. There is no resistance to mineral oils and greases.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| NK-SBR 43 | black | 43 | 80-08-43000 | – | |||
| NK-SBR 53 | black | sulphur cross-linked | -40 / +90 | 53 | 80-08-53000 | – | |
| NK 70 | black | 70 | 80-08-70000 | – |
Overview HNBR Compounds
Material Description
Hydrogenated nitrile (HNBR) is a family of products designed to eliminate some of the defects of nitriles. HNBR shows improved chemical resistance, a higher service temperature and a lower brittle temperature than normal nitrile. HNBR polymers are reacted with hydrogen to hydrogenate part of the unsaturation of NBR to improve chemical compatibility with certain media such as sour gas, ozone and some additive packages.
Main Properties
Very good resistance to oil and petrol: excellent resistance to petroleum-based hydraulic fluids, wide operating temperature range, good resistance to hydrocarbon solvents, very good resistance to alkalis and solvents.
Limtis
Low resistance to ozone, sunlight and natural ageing, poor resistance to oxygenated solvents.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| H-NBR 50 | black | peroxidisch vernetzt | -25 / +150 | 50 | 80-09-50000 | – | |
| H-NBR 70 | black | -40 / +170 | 70 | 80-09-70000 | – | ||
| H-NBR 70 | black | FDA compliant | peroxide cross-linked | -25 / +150 | 70 | 80-09-70002 | PDF, 201 KB |
| H-NBR 70 | black | peroxide cross-linked | -54 / +175 | 70 | 80-09-70003 | – | |
| H-NBR 70 | black | peroxide cross-linked | -25 / +150 | 70 | 80-09-70004 | PDF, 197 KB | |
| H-NBR 90 | black | -35 / +150 | 90 | 80-09-90000 | – | ||
| H-NBR 70 | black | peroxide cross-linked | -40 / +150 | 70 | 80-09-V7000 | PDF, 197 KB | |
| H-NBR 80 | black | Material machinable | peroxide cross-linked | -25 / +150 | 80 | 80-09-V8000 | PDF, 198 KB |
| H-NBR 80 | black | 80 | 80-09-V8004 | – | |||
| H-NBR 80 | black | Friction modified material | peroxide cross-linked | -25 / +150 | 80 | 80-09-V8008 | PDF, 197 KB |
| H-NBR 85 | black | Optimized against explosive decompression | peroxide cross-linked | -25 / +150 | 85 | 80-09-V8500 | PDF, 200 KB |
| H-NBR 85 | black | Material machinable | peroxide cross-linked | -20 / +150 | 85 | 80-09-V8503 | PDF, 216 KB |
Overview SBR Compounds
Material Description
SBR is similar to natural rubber in most respects and is the most cost-effective and highest-volume elastomer on the market. Although its physical properties are slightly worse than those of natural rubber, SBR is tougher and more resistant to heat and cracking and can easily be replaced by natural rubber in many applications. With the exception of silicone, butadiene has the lowest glass transition temperature of any commercially available elastomer and offers exceptionally good performance at temperatures as low as -62° C (-80° F).
Main Properties
Very good elasticity, tensile strength, abrasion resistance and flexibility at low temperatures.
Limits
Poor resistance to ozone and sunlight; very low resistance to oils, petrol and hydrocarbon solvents.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| SBR 45 | black | sulphur cross-linked | -40 / +100 | 45 | 80-12-45000 | – |
Overview AU Compounds
Material Description
Polyurethane is characterised by the combination of hardness with elasticity, excellent abrasion resistance and high tear resistance. It can be either ether or ester based. The ester-based polymer is superior in resistance to abrasion and heat; the ether-based polymer has better flexibility at low temperatures. Polyurethanes are available in both liquid and solid form. Polyurethanes are mainly used in applications that require a combination of their excellent properties: Toughness, tensile strength and abrasion resistance.
Main Properties
Excellent abrasion and tear resistance; very high tensile strength with good elongation; excellent weather, ozone and sun resistance; good oil and petrol resistance; excellent adhesion to textiles and metals.
Limits
Poor resistance to alkalis, acids and oxygenated solvents; poorer resistance to hot water.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| PUR 60 | nature | peroxide cross-linked | -30 / +110 | 60 | 80-13-60000 | – | |
| PUR 70 | nature | peroxide cross-linked | -30 / +100 | 70 | 80-13-70000 | – | |
| PUR 70 | black | peroxide cross-linked | -30 / +110 | 70 | 80-13-70001 | – | |
| PUR 80 | beige | peroxide cross-linked | -30 / +110 | 80 | 80-13-80000 | – | |
| TPU 93 | fire red | FDA and EG compliant | -20 / +80 | 93 | 80-13-93000 | – | |
| HPU 94 | red | FDA compliant | -30 / +110 | 94 | 80-13-94000 | PDF, 219 KB | |
| HPU 94 | green | -30 / +110 | 94 | 80-13-94002 | PDF, 216 KB |
Overview ACM Compounds
Material Description
The heat resistance of acrylic is better than that of most elastomers, with the exception of silicone, fluorosilicone and fluorocarbon. It is suitable for both hot air and hot oil over long periods of time. Acrylic has moderate resistance to cut growth and bending cracks. The use of acrylic is limited by its low flexibility at low temperatures. However, some types of acrylic glass may have improved flexibility at low temperatures at the expense of tensile strength and oil resistance.
Main Properties
Excellent resistance to heat and hot oil; excellent resistance to weathering, ozone, sunlight and oxidation; very good resistance to petrol and oil, especially sulphur-containing substances.
Limits
Poor resistance to alcohols, alkalis, solvents and aromatic solvents; limited flexibility at low temperatures; lower resistance to water and steam.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| ACM 70 | black | 70 | 80-15-70005 | – |
Overview of FFKM Compounds
Material Description
Perfluoroelastomers are products with a high utility value.
Main Properties
The best combination of chemical and high temperature resistance of all elastomers. Thermal stability depends on the polymer and curing chemistry. Peroxide crosslinking perfluoroelastomers have similar thermal resistance to FKM, while proprietary curing systems (such as Kalrez®) offer temperature resistance up to 327 °C with specific polymers.
Limits
The performance of perfluoroelastomers is limited at lower temperatures.
| Article Name | Color | Approval and Properties | Cross-linking / Type | Temperature °C | Shore A | Article Number Trygonal specific | PDF Data Sheet |
|---|---|---|---|---|---|---|---|
| FFKM 65 | black | -30 / +230 | 65 | 80-18-65000 | PDF, 184 KB | ||
| Perfluorpolyether | black | peroxide cross-linked | -50 / +180 | 70 | 80-18-70005 | PDF, 188 KB | |
| FFKM 75 | black | FDA compliant | 275 | 75 | 80-18-75007 | PDF, 183 KB | |
| FFKM 75 | white | peroxide cross-linked | 300 | 75 | 80-18-75008 | PDF, 184 KB | |
| FFKM 75 | black | peroxide cross-linked | 230 | 75 | 80-18-75009 | PDF, 187 KB | |
| FFKM 75 | transparent | peroxide cross-linked | 200 | 75 | 80-18-75010 | PDF, 182 KB |
Do you have any questions?
Our team of experts is at your disposal at any time to answer your questions.
